Aflex Ships Equipment recognises the potential hazard that shipping operations may pose to the environment. We constantly look for ways to improve the pollution control equipment to help minimise any negative impact to the environment.

Our pollution control equipment is designed to meet the latest requirement by IMO and MARPOL regulation:
» Oily Water Separator
» Sewage Treatment Plant

Oily Water Separator

The oily water separator is supplied as a compact modular system, with internal piping and wiring. It is ready to use by connecting the suction and discharge lines as well as the central power supply. The oily water separator conforms to IMO Resolution MEPC 107(49) and comes with 15 ppm bilge alarm.

Specifications

» Measurement range: 0~30ppm
» Measurement precision: 15ppm+/-5ppm (IMO Standard)
» Instant alarm relay
» Power: AC 110/220V
» Output: 4~20mA
» Size: 285x190x90mm
» IMO Resolution MEPC 107(49) Approved

DIMENSIONSCAPACITY
Model L
(mm)		 W
(mm)		 H
(mm)		 Weight
(Dry)		 Weight
(Wet)		 Pipe Dia Max Capacity
(m3)/h
MS02 660 400 1660 185 265 25A 0.2
MS03 700 450 1800 220 340 25A 0.3
MS05 700 450 1960 230 360 25A 0.5
MS10 800 550 2020 320 545 25A 1
MSP10 1600 550 1560 430 730 25A 1
MSP20 1980 750 1660 590 1120 25A 2
MSP30 2250 850 1800 695 1450 40A 3
MSP50 2400 900 1960 755 1565 40A 5

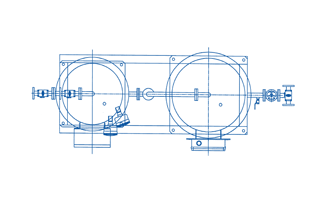

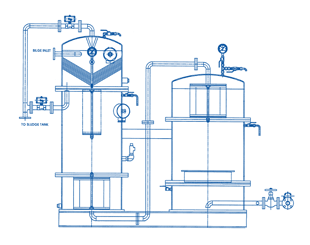

OUTLINE DRAWING

Sewage Treatment Plant

The system has been developed using the "submerged fixed bed bio-film process". The advantage of this treatment method is its extremely large reactive area, which is up to 15 times larger than conventional systems. This area is occupied by active micro-organisms within a short period of time, thus forming the bio-mass. The sewage to be cleaned has to flow through this bio-mass and is cleaned using organic methods

DIMENSIONS
Model Persons L
(mm)		 W
(mm)		 H
(mm)		 Empty Wt
(kg)		 Operation Wt
(kg)
SBT 10 10 1.030 1.050 1.490 480 1.080
SBT 20 20 1.410 1.050 1.490 550 1.500
SBT 30 30 1.600 1.350 1.490 650 2.300
SBT 40 40 1.660 1.680 1.490 940 3.110
SBT 50 50 2.032 1.680 1.490 1.040 3.700
up to SBT 800 800 on request



SECTIONAL VIEW

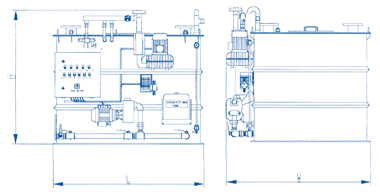

OUTLINE DRAWING

Main Air Compressor

The marine air compressor are available in air-cooled and water-cooled versions. The marine air compressor is noted for its durability, high performance, space saving, low vibration, low noise level, light weight, high volumetric and low installation cost. The system is manufactured and tested under full load in accordance with the valid standards to offer economical, can apply to air and neutral gases up to pressure of 350 bar.


AIR COOLED AIR COMPRESSOR
DIMENSIONCAPACITY
Model

Maximum Dimensions
L x W x H (mm)

 Maximum Pressure
(bar)		 No of Stages

 Maximum Speed
(rpm)

Maximum
Free Air Delivery
(m³/hr)

 Maximum Power
(kW)
BL 20 870 x 580 x 650 40 2 1750 22 4.9
BL 30 910 x 560 x 655 40 2 1750 33 7.2
BL 60 1160 x 630 x 660 30 2 1750 62 14.1
BL120 1436 x 832 x 931 40 3 1750 135 28.0
BL160 1500 x 858 x 786 40 3 1750 160 33.6
BL180 1545 x 1044 x 1087 40 3 1750 190 38.3
BL225 1601 x 1044 x 1087 40 3 1750 235 48.9
BL350 1812 x 1170 x 1135 40 3 1750 460 89.5
BL550 1812 x 1170 x 1135 40 3 1450 455 87.3




WATER COOLED AIR COMPRESSOR
DIMENSIONCAPACITY
Model

Maximum Dimensions
L x W x H (mm)

 Maximum Pressure
(bar)		 No of Stages

 Maximum Speed
(rpm)

Maximum
Free Air Delivery
(m³/hr)

 Maximum Power
(kW)
BV 20 800 x 560 x 650 30 2 1750 22 4.9
BV 30 840 x 580 x 600 30 2 1750 33 7.2
BV 60 1050 x 630 x 770 30 2 1750 62 14.1
BV 90 1228 x 856 x 786 30 3 1750 100 21.0
BV120 1266 x 856 x 786 30 3 1750 135 27.6
BV160 1330 x 856 x 786 30 3 1750 170 33.4
BL225 1363 x 1035 x 900 30 3 1750 230 44.1
BL275 1410 x 1035 x 925 30 3 1750 280 53.3
BL450 1587 x 1185 x 1081 30 3 1450 450 84.6
BL550 1587 x 1185 x 1081 30 3 1450 465 84.4



Hydrophore System

The hydrophore unit is pre-wired and tested before delivery to ensure its performance, the unit control functions can be customized and integrated into the system according to your needs and requirements. The hot water calorifier unit can be customized to suit wide range of requirement, it is also compliance to IMO rules and fulfils Green passport requirement.

SPECIFICATIONS

Capacity Material Pressure Temperature Inspection
Hydrophore Unit 100-6000 Litre Carbon Steel/Stainless Steel 3-10bar 10-80degree Maker's inspection/ Class Certification
Calorifier 100-6000 Litre Carbon Steel/Stainless Steel 3-12bar - -

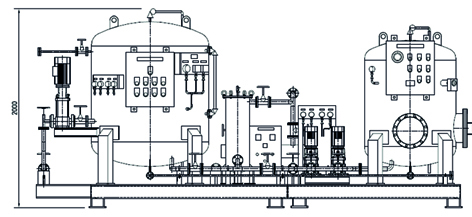

OUTLINE DRAWING

Fresh Water Generator

The fresh water generator are available in Tubular Type and Plate Type. Tubular Type produces water economically without any additional heat source. Plate Type utilizes the heat from diesel engine coolant to evaporate sea water based on two titanium plate heat exchange acting as an evaporator and a condenser. The fresh water generator produced water’s salinity will not exceed 10ppm, the produced water is very pure and soft water to be used in many purposes.

DIMENSIONS
Model Capacity
(m³/day)		 L
(mm)		 W
(mm)		 H
(mm)		 Weight
(kg)
ISF 10 1 783 360 800 80
ISF 30 2-3 752.5 437 875 110
ISF 40 4-5 1052.5 437 875 145
ISF 50 10 1293 700 1080 365
ISF 60 12 1363 758 1210 420
ISF 70 15 1363 758 1210 420
ISF 80 20 1742 940 1580 1020
ISF 90 25 2022 940 1580 1200
ISF 100 30 2032 1080 1780 1300
ISF 110 35 2052 1200 1880 1420
ISF 120 40 2252 1300 2080 1580
ISF 10P 10 1370 1180 1535 1000
ISF 15P 15 1370 1205 1535 1060
ISF 20P 20 1370 1315 1535 1100
ISF 25P 25 1370 1315 1535 1060
ISF 30P 30 1370 1315 1535 1100
ISF 35P 35 2425 1380 2180 1250
ISF 40P 40 2425 1380 2180 1250
ISF 45P 45 2425 1380 2180 1380
ISF 50P 50 2425 1380 2180 1380
ISF 60P 60 2425 1380 2180 1500

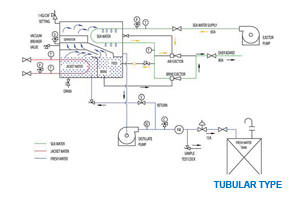

OUTLINE DRAWING (TUBULAR TYPE)

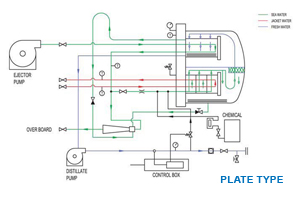

OUTLINE DRAWING (PLATE TYPE)
