DPF
Oil Transfer & Booster Pump
The DPF Series pumps are horizontal triple screw pumps. The pump is positive displacement type and it can handles wide range of medium with low viscosity of 3cst. The pump is noted for its low operating noise level, low pulsation, high efficiency and reliability. The pump can be mounted in vertical and horizontally. It includes an internal pressure relief valve, a driving screw that is hydraulically balanced and all sliding parts are lubricated by the delivery medium.
DIMENSIONS | PERFORMANCE | |||||||
---|---|---|---|---|---|---|---|---|
Model | A | H | K | Inlet | Outlet | Max Capacity (LPM) |
Max Head (bar) |
Max Speed (rpm) |
DPF 20-38 | 125 | 280 | 19 | 25 | 25 | 35 | 40 | 3400 |
DPF 20-46 | 125 | 280 | 19 | 25 | 25 | 47 | 40 | 3400 |
DPF 20-56 | 125 | 280 | 19 | 25 | 25 | 65 | 40 | 3400 |
DPF 40-38 | 135 | 308 | 19 | 32 | 25 | 73 | 40 | 3400 |
DPF 40-46 | 135 | 308 | 19 | 32 | 25 | 98 | 40 | 3400 |
DPF 40-54 | 135 | 308 | 19 | 32 | 25 | 132 | 40 | 3400 |
MATERIALS | ||
---|---|---|
Casing | Screw | Seal |
Cast Iron | Steel | Mechanical Seal |
SECTIONAL VIEW |

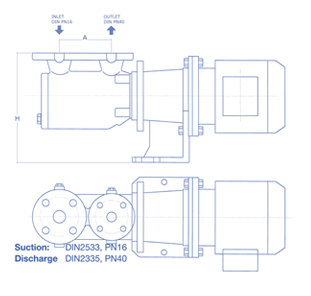

OUTLINE DRAWING |
![]() |
![]() |
