BK,LK,FMS
Bilge & Sludge Pump
The BK and LK Series pumps are progressive cavity pump, with flexibility to install horizontally or vertically. The pumps are positive displacement with block and bearing housing version design. The pumps are noted for low NPSH, low pulsation and reversible delivery direction. The FMS Series pumps are free moulded progressive cavity pump. The pump is noted for its economical designed by lightweight, compact in size and versatile. These pumps main components are the stator and rotor, manufactured in a wide variety of material and suitable for wide spread of applications.
DIMENSIONS | CAPACITY | |||||||
---|---|---|---|---|---|---|---|---|
Model | A | B | C (BK) | C (LK) | Inlet | Outlet | Max Capacity (m3/h) |
Max Head (m) |
BK021-1L | 145 | 410 | 870 | 1050 | 32 | 32 | 3 | 60 |
BK032-1L | 145 | 557 | 1030 | 1310 | 50 | 50 | 5 | 60 |
BK039-1L | 195 | 764 | 1400 | 1640 | 65 | 65 | 10 | 60 |
BK045-1L | 200 | 941 | 1600 | 2010 | 80 | 80 | 15 | 60 |
BK052-1L | 182 | 1079 | 1800 | 2150 | 80 | 80 | 20 | 60 |
BK065-1L | 380 | 1270 | 2100 | 2500 | 100 | 100 | 40 | 60 |
BK075-1L | 415 | 1545 | 2380 | 3620 | 125 | 125 | 60 | 60 |
BK091-1L | 415 | 1648 | 2380 | 3900 | 125 | 125 | 90 | 60 |
BK102-1L | 675 | 2128 | 3630 | 4050 | 150 | 150 | 130 | 60 |
BK132-1L | 465 | 2550 | 5800 | 4700 | 200 | 200 | 220 | 60 |
DIMENSIONS | CAPACITY | |||||||
Model | A | B | C (FMS) | Inlet | Outlet | Max Capacity (m3/h) |
Max Head (m) |
|
FMS 254 | 124 | 248 | 655 | 38 | 38 | 2.8 | 35 | |
FMS 354 | 124 | 248 | 655 | 38 | 38 | 3.8 | 35 | |
FMS 504 | 203 | 286 | 662 | 50 | 50 | 5.5 | 35 | |
FMS 604 | 132 | 286 | 682 | 50 | 50 | 6.2 | 35 | |
FMS 1004 | 132 | 286 | 682 | 50 | 50 | 10.2 | 25 | |
MATERIALS | |||
---|---|---|---|
Casing | Rotor | Stator | Seal |
Cast Iron | Stainless Steel | NBR Buna | Mechanical |

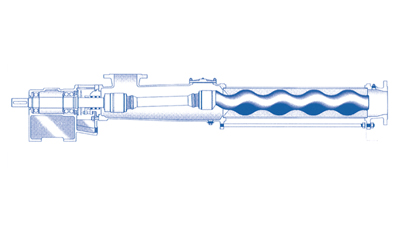

SECTIONAL VIEW FOR BK,LK |
![]() |

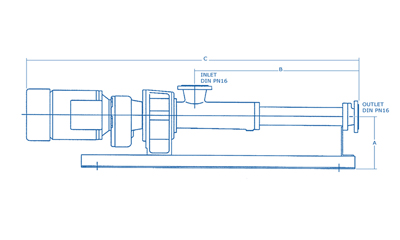

OUTLINE DRAWING FOR BK,LK |
![]() |

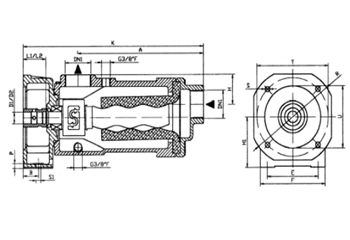

SECTIONAL VIEW FOR FMS |
![]() |

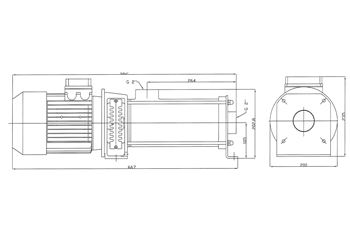

OUTLINE DRAWING FOR FMS |
![]() |
