DHG, DHGH, DG, DRN
Oil Transfer Pump
The DHG, DHGH and DRN Series pumps are horizontal gear pumps, DG Series pumps are vertical in-line gear pumps. The pumps are positive displacement and self-lubricated by medium. The pumps are noted for smooth running, low noise, low pulsation, long life span and high efficiency. The pumps are designed with built in safety pressure relief valve, able to handle medium with pressure up to 16bar and viscosity up to 1300cst respectively.
PERFORMANCE | |||
---|---|---|---|
Model | Max Capacity (m3/h) |
Max Head (m) |
Max Speed (rpm) |
DHG | 30 | 6 | 1800 |
DHGH | 20 | 16 | 1800 |
DG | 40 | 6 | 1200 |
DRN | 200 | 20 | 1800 |
MATERIALS | ||
---|---|---|
Casing | Gear | Seal |
Cast Iron | Steel Alloy | Mechanical Seal |
SECTIONAL VIEW FOR DHG, DHGH |

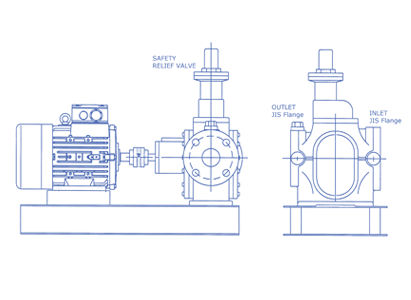

OUTLINE DRAWING FOR DHG, DHGH |
![]() |
![]() |
SECTIONAL VIEW FOR DRN |

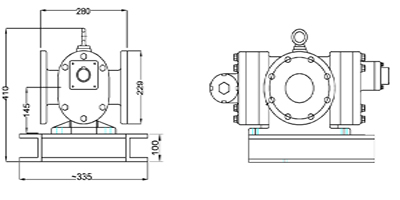

OUTLINE DRAWING FOR DRN |
![]() |
![]() |
